EZ-Roll'r Halterung XP10

XP5 RAM Mount® XP10 professionelles Fahrzeug-Bundle


Fahrzeug Aufbauhalterung komplett XP10 RAM MOUNT EZ-Roll’r Serie

1 vorrätig

Artikelnummer: XP10-138-S-SNM4PL-V7B1U Kategorie: Schlagwörter: , ,

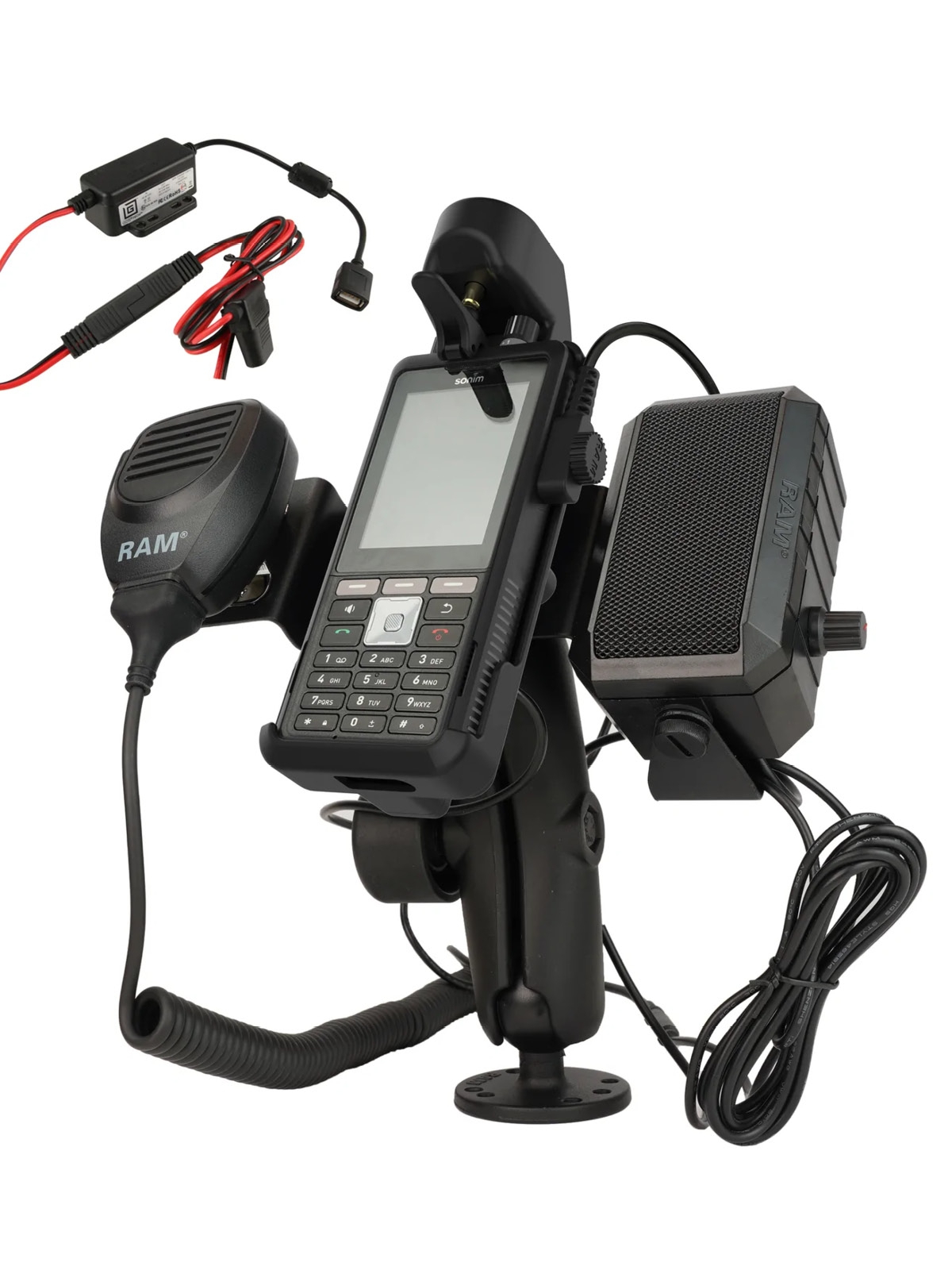

This Sonim XP10 bundle includes the RAM® EZ-Roll’r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.

Speaker specifications: Independently adjustable volume knob, max volume level 100dB, 8Ω / 10W rated speaker

Socket to socket length: 4.66″
Hole pattern: 4-Hole AMPS 1.181″ x 1.496″, 3-Hole 120-Degree 1.812″ Diameter
Plate size: 2.5″ Diameter
Ball size: C Size (1.5″)
Weight capacity: Standard Use 4 lbs, Heavy-Duty Use 3 lbs

Material(s): Marine-grade aluminum, High strength composite, Powder-Coated Steel

Input voltage: 10-30V DC
Output voltage: 5-9V DC
Output current: 2.5 A max.
Input connector: charger female USB Type A
Input cable length: 1,2 m including 2 Pole Flat Marine Connector
Output cable length: 0,2 m

Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C

Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant

Certifications: CE, e-Mark, RCM, FCC

Zusätzliche Information

Gewicht 1900 g
