Ez-Roll'r XP5+

XP5 RAM Mount® XP5+ professionelles Fahrzeug-Bundle


Fahrzeug Aufbauhalterung komplett XP5+ RAM MOUNT EZ-Roll’r Serie

1 vorrätig

Artikelnummer: XP5-138-S-SNM3PL-V7B1U Kategorie: Schlagwörter: , ,



Bundle for Sonim XP5plus includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication; supports both versions with and without PTT control knobs

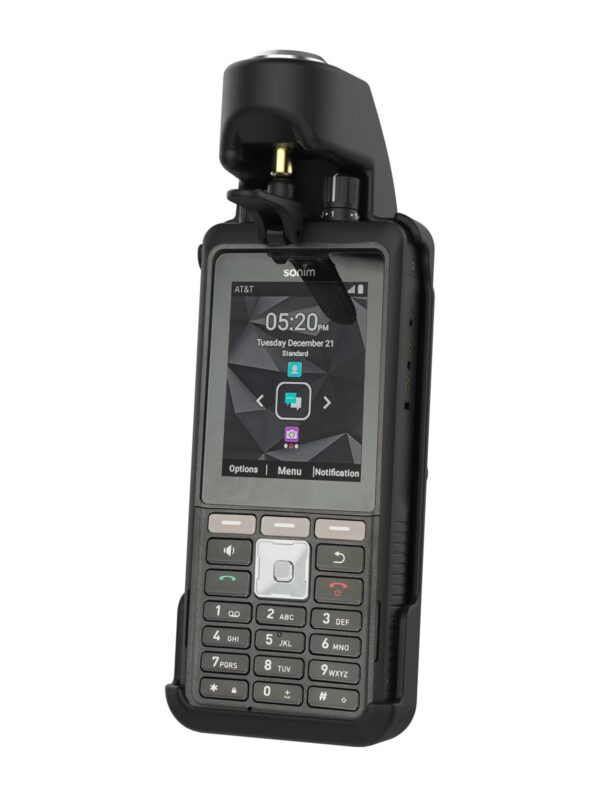

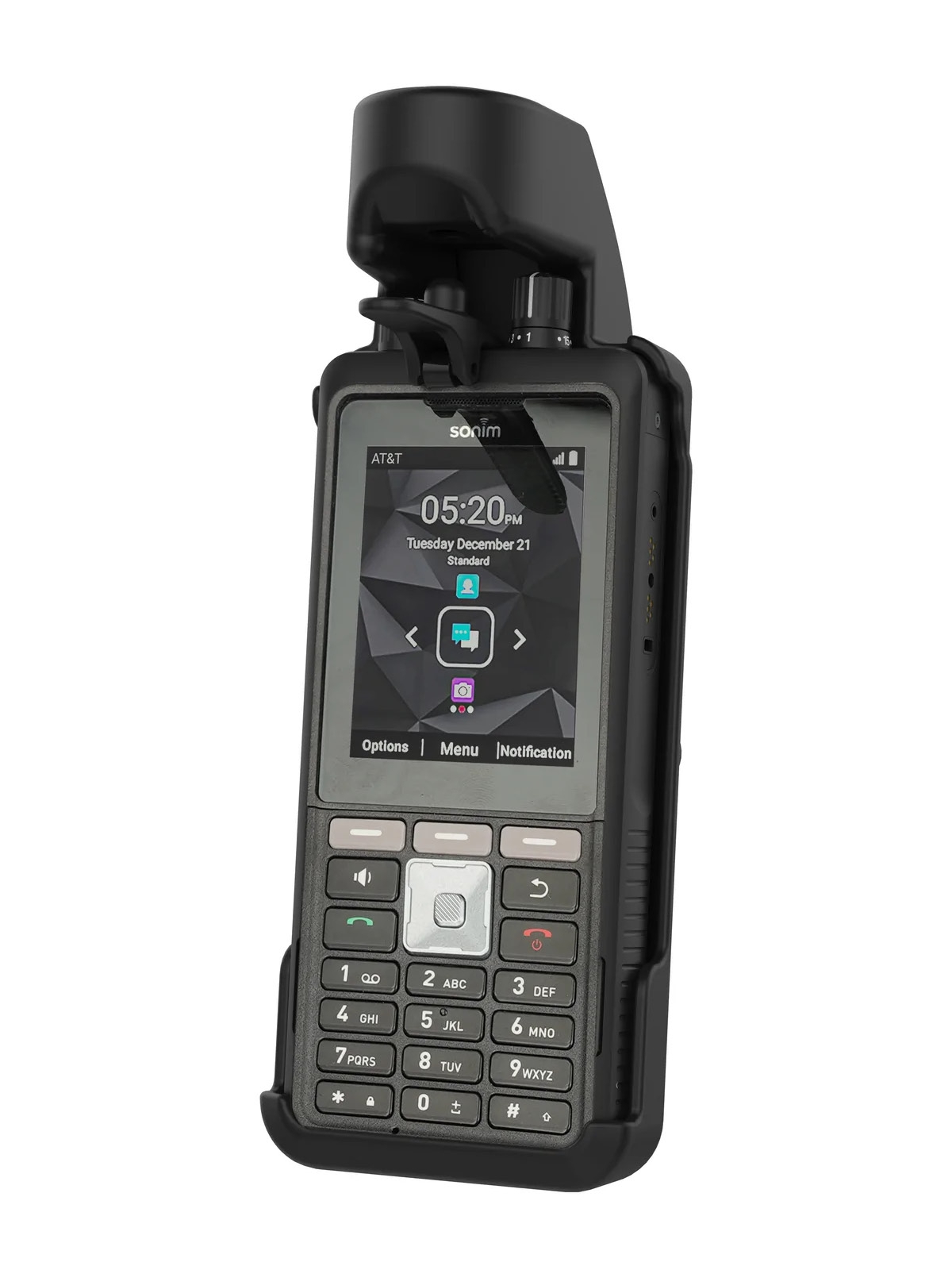

Powered RAM® EZ-Roll’r™ style form-fit dock provides a perfect fit for your device while keeping the device charged
Key lock and RAM® Pin-Lock™ for theft deterrence

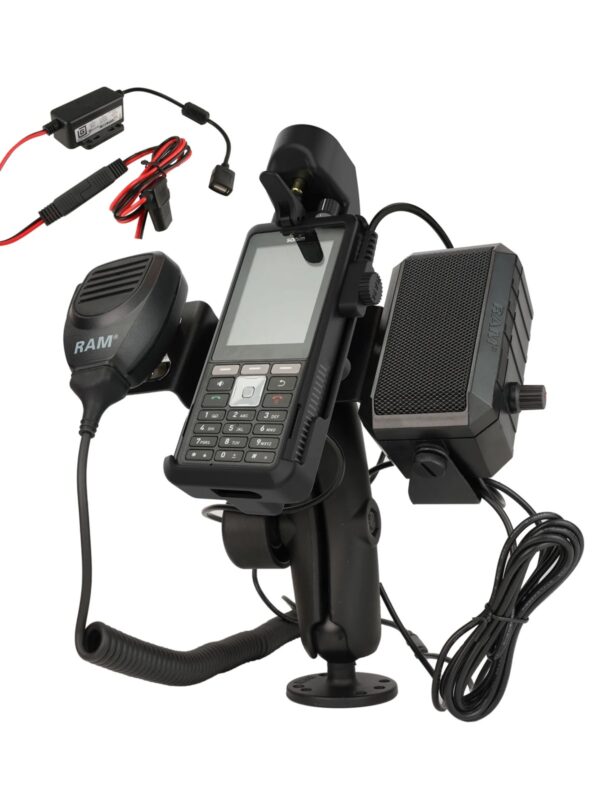

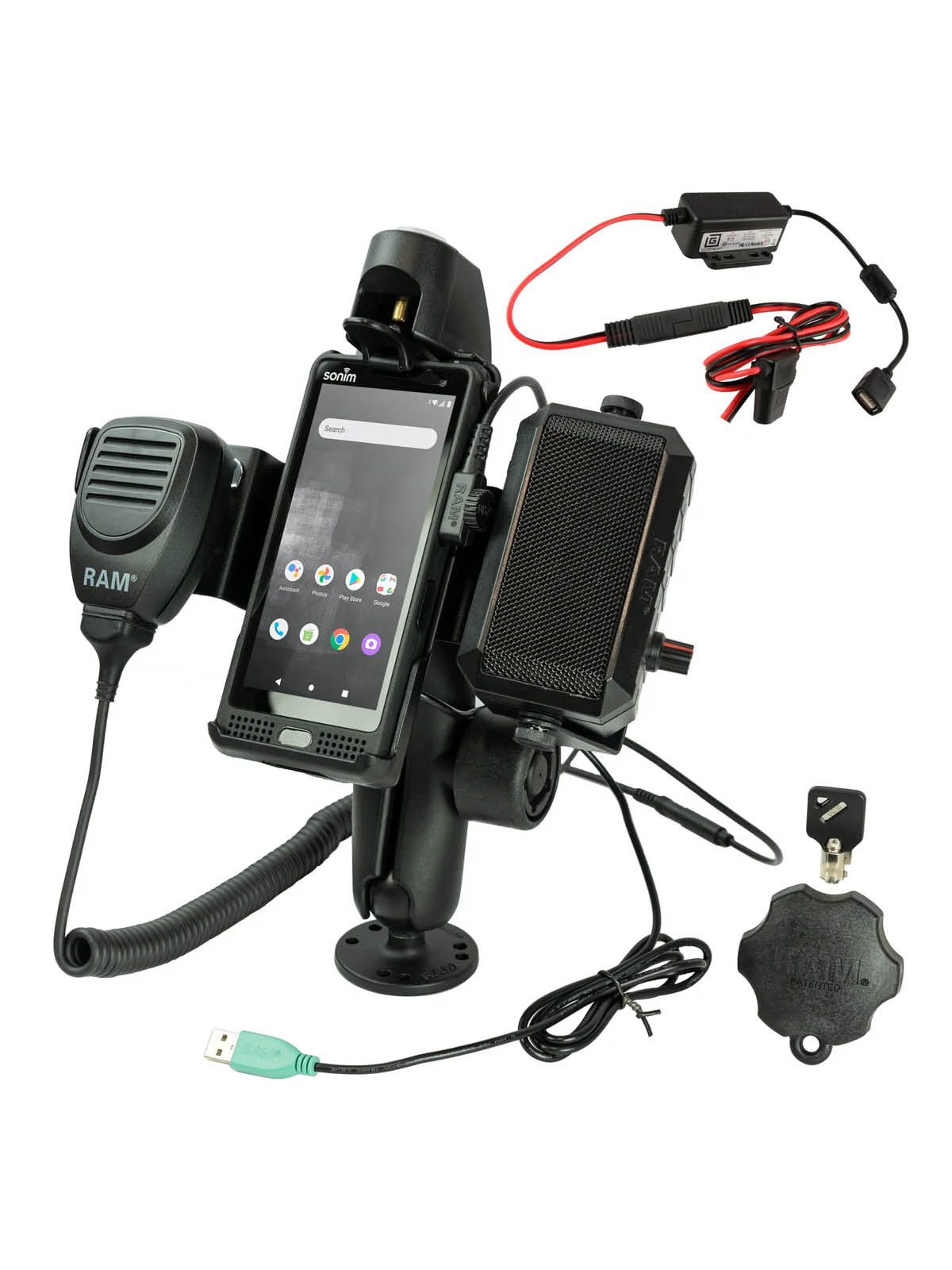

This Sonim XP5plus bundle includes the RAM® EZ-Roll’r™ Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5plus and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. This dock will support both variations of the Sonim XP5plus; with and without PTT control knobs.

Speaker specifications:

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker

Socket to socket length: 4.66″
Hole pattern: 4-Hole AMPS 1.181″ x 1.496″ / 3-Hole 120-Degree 1.812″ Diameter
Plate size: 2.5″ Diameter
Ball size: C Size (1.5″)
Weight capacity: standard use 4 lbs, heavy-duty use 3 lbs
Input voltage. 10V – 30V DC
Output voltage: 5-9VDC
Output current: 2.5A max
Input connector: charger female USB Type A
Input cable length: 1.2 m including 2 Pole Flat Marine Connector
Output cable length: 0.2 m
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant


CE Certification
e-Mark Certification
RCM Certification
FCC Certification

Zusätzliche Information

Gewicht 1750 g
